Validating pilot data

Making sure your experiment is ready for prime time.

After piloting your experiment, here's a few tools you can use to validate your data.

  • [onset_bad, offset_bad] = validate_onsetOffset(dataPath, badThresh, bInterpret).

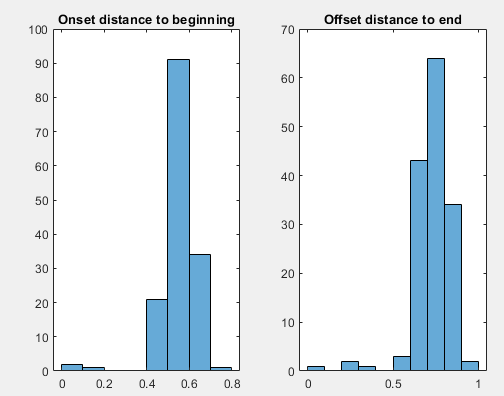

    • WHAT IT DOES: This function shows histograms of how close a speaker's voice onset and offset were to the edge of the recording. Use to validate that you were recording the whole utterance.
    • WORKS FOR: Audapter experiments.
    • Optionally returns two output arguments, which are vectors of trial numbers too close to the onset/offset respectively.


  • validate_formantShift(dataPath, plotParams, bInterpret).

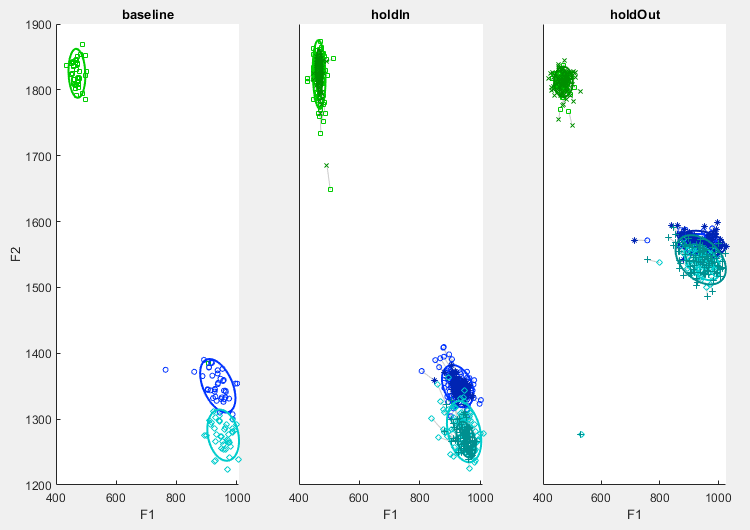

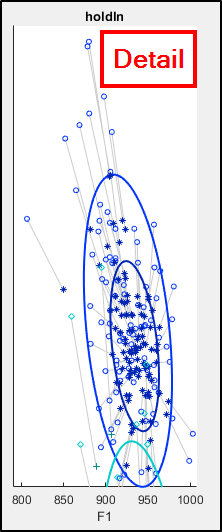

    • WHAT IT DOES: Plots the average formants from signalIn and compares it against the average formants from signalOut on an [F1 F2] field. Shows different plots for different conditions in expt.conds. Use to visually validate that the proper F1/F2 perturbations were applied in different conditions.
    • WORKS FOR: Formant perturbation experiments, especially ones where the same perturbation is applied over the whole utterance.



  • [Tables] = validate_exptSetup(dataPath, groupings, bInterpret).

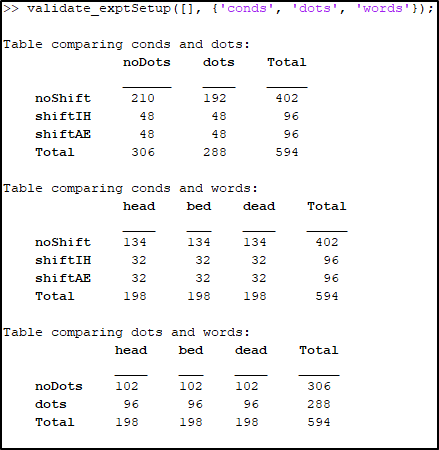

    • WHAT IT DOES: Shows the number of trials in pairs of groupings; for example, how many trials were both expt.word{1} and expt.cond{1}, expt.word{2} and expt.cond{1}, etc. Useful for making sure your counterbalancing across different manipulations is happening properly.
    • WORKS FOR: Any experiments with counterbalanced groupings. E.g., words + conds (various), words + conds + colors (stroop), words + conds + dots (attentionComp).

  • [figHandle] = plot_audapterFormants(data, plotParams, bInterpret)
    • WHAT IT DOES: Simply displays the wave form (top), spectrogram (bottom), signalIn formant track (bottom; cyan), and signalOut formant track (bottom; magenta).
    • WORKS FOR: Any Audapter experiment.
    • The first input parameter takes a data.mat file. However, this function is intended to run on 1-10 trials at a time. You should view only a subset of the data file at a time, such as plot_audapterFormants(data(1:10), [], [])
